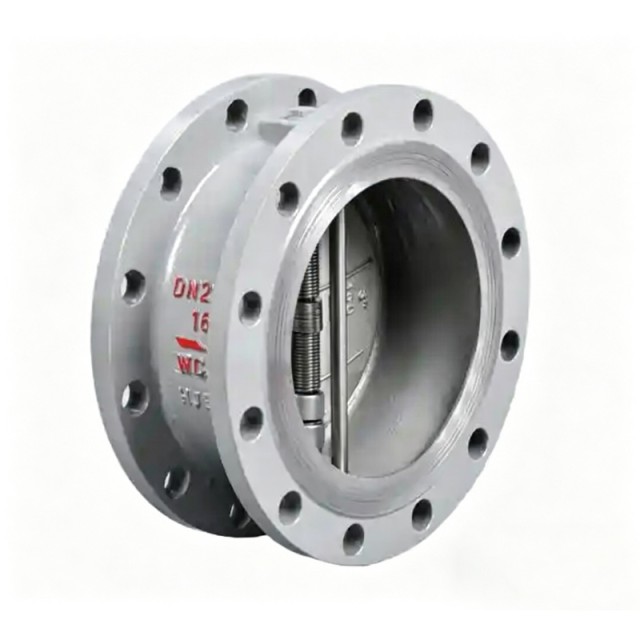

Disc Check Valve

Disc Check Valve

Main Parameters

• Nominal Pressure: PN10～PN40

• Nominal Diameter: DN50～DN1200, with significant advantages for large diameters

• Operating Temperature: -20℃～+200℃, adaptable to high and low temperature conditions depending on the sealing material

• Connection Method: Flange, Wafer, Double Flange, strong installation adaptability

• Sealing Form: Rubber soft seal, metal hard seal, tight seal, sensitive opening and closing

Structural Forms

1. Wafer Butterfly Check Valve: Lightweight and low cost, installed between two flanges, occupying little space.

2. Double-Disc Butterfly Check Valve: Symmetrical structure with double valve plates, smooth opening and closing, low water hammer, suitable for high flow pipelines.

3. Single-Disc Butterfly Check Valve: Simple structure, good flow performance, suitable for conventional water supply and drainage, and industrial pipelines.
Online Inquiry Contact Us

Product Description

Key Advantages



• Compact size and light weight, easy installation, significantly saving pipeline installation space and costs.

• Low flow resistance and strong flow capacity, ensuring smooth media flow and low pressure loss.

• Rapid opening and closing, sensitive operation, quickly preventing backflow and buffering water hammer impact.

• Simple and reliable structure, fewer parts, low failure rate, and maintenance-free operation.

• High cost-effectiveness, with significant advantages in large-diameter selection, widely applicable to water supply and drainage, chemical, and HVAC systems.



Applicable Working Conditions



• Municipal Water Supply and Drainage: Backflow prevention protection for tap water, sewage pipe networks, and pump station outlets.

• HVAC and Fire Protection: Central air conditioning circulating water, fire water pipes, and heating pipeline systems.

• Industrial Piping: Cooling water, compressed air, oil, and general corrosive media transportation.

• Chemical and Light Industry: Neutral process fluids, waste gas and wastewater ordinary anti-corrosion pipelines.

• Large-Scale Projects: Dedicated for large-diameter main pipelines in power plants, water plants, and industrial parks.

Online Inquiry

Submit

Related Products

Gate Valve

Gate Valve

Working Principle: The medium flows in from below the valve seat, passes through the throttling gap between the valve disc and the valve seat, and flows out from the outlet. The valve disc stroke is controlled by the rise and fall of the valve stem, changing the flow cross-sectional area to achieve both shut-off and throttling. When closed, the axial pressure of the valve stem presses against the sealing surface to achieve a tight seal.

Structural Features:
1. Unidirectional Flow: Medium enters from a lower position and exits from a higher position; cannot be installed in reverse, requiring directional control during installation.

2. Good Sealing Performance: Plane/conical surface seal, tight closure, low leakage.

3. Excellent Throttling Performance: Controllable stroke, suitable for small-amplitude pressure and flow adjustment.

4. Relatively High Flow Resistance: S-shaped flow path in the pipeline, resistance coefficient higher than gate valves and ball valves.

5. Short opening and closing stroke, simple structure, convenient maintenance and replacement of parts.

Fluorine-Lined Gate Valve

Fluorine-Lined Gate Valve

Basic Definition: A fluoropolymer-lined gate valve is a forced-seal shut-off valve in which the inner surfaces of the valve body, cover, disc, and seat—all in contact with the medium—are entirely lined with a layer of fluoroplastic (PTFE/FEP/PFA/TFM, etc.). Its core structure combines metal load-bearing with fluoroplastic corrosion protection.

Core Structure:
• Valve Body/Cover: Carbon steel/stainless steel shell, lined with fluoroplastic
• Valve Disc/Seat: Fully fluoropolymer-lined, flat/conical seal, axially moving
• Valve Stem: Rising stem or rising/rotating stem, with packing seal
• Actuation: Manual, worm gear, pneumatic, electric

Check Valve

Check Valve

Working Principle: When the medium flows in the forward direction, the fluid pressure opens the valve disc/valve core, allowing the valve to open. When the medium flows in the reverse direction or the pressure reverses, the valve automatically closes and seals itself due to its own weight and the pressure of the reverse medium, completely blocking backflow without manual or electrical control.

Main Classifications and Structures:
1. Swing Check Valve: The valve disc swings around a pin. Commonly used in large-diameter applications, it has low flow resistance and smooth passage, suitable for water, steam, and oil.

2. Lift Check Valve: The valve disc moves vertically up and down along the valve stem, providing better sealing performance. Often used in small-diameter, high-pressure applications.

3. Wafer Check Valve: Ultra-thin structure, small size, low cost. It is clamped between two flanges for easy installation.

4. Butterfly Double-Disc Check Valve: Double-disc structure, sensitive opening and closing, good buffering, suitable for large-diameter water supply and drainage, and industrial pipelines.

5. Silent Check Valve: With a buffer structure, it reduces water hammer and noise. Commonly used in buildings and pump rooms.

Fluorine-Lined Gate Valve

Fluorine-Lined Gate Valve

Working Principle:
The valve stem drives the gate to rise and fall vertically, controlling the flow of the pipeline; the medium only contacts the fluoroplastic lining layer and does not directly contact the metal valve body, completely isolating it from acid and alkali corrosion; it allows bidirectional flow without flow direction restriction, and is only used for switching off, not for throttling or regulating.
