Welding Gate Valve

Welding Gate Valve

Main Performance Parameters

• Nominal Pressure: PN16～PN160, complete high-pressure series

• Nominal Diameter: DN15～DN300

• Operating Temperature: -29℃～+425℃ (carbon steel); stainless steel and alloy steel are suitable for high-temperature conditions above 600℃

• Connection Method: Butt welding (BW), socket welding (SW), flangeless connection

• Sealing Form: Hard alloy seal, weld overlay seal, high sealing level, pressure and high temperature resistance

Structural Forms

1. Straight-through welded gate valve: Conventional and universal structure, widely applicable to most process pipelines.

2. Angle welded gate valve: 90° inlet and outlet layout, suitable for pipeline bends and compact equipment interface installation positions.

3. Y-type direct-flow welded gate valve: Smooth flow path, lower flow resistance, reducing media resistance and scouring losses.
Online Inquiry Contact Us

Product Description

Key Advantages



• Welded connection, zero leakage points, zero external leakage, sealing performance far exceeding flanged valves.

• Integral forged valve body, high strength, high pressure resistance, high temperature resistance, and creep resistance, suitable for harsh working conditions.

• Compact structure and small size, saving installation space, suitable for narrow pipe corridors and areas with dense equipment.

• Forced sealing structure, excellent cut-off performance, accurately cuts off the medium, preventing crossflow and leakage.

• Resistant to aging and fatigue, stable operation under long-term high temperature and high pressure conditions, long service life.



Applicable Applications



• Power plants: High-temperature and high-pressure steam pipelines, boiler systems, thermal power generation pipelines.

• Petrochemical industry: Oil refining, coal chemical industry, hydrogenation units, high-pressure process media transportation.

• Thermal energy industry: Heat transfer oil, superheated steam, high-pressure hot water, high-temperature circulation systems.

• Energy and gas: High-pressure gas, closed-loop transportation pipelines for industrial special gases.

• Precision operating conditions: Chemical and special equipment pipelines requiring no external leakage, explosion-proof, and high airtightness.

Online Inquiry

Submit

Related Products

Check Valve

Check Valve

Working Principle: When the medium flows in the forward direction, the fluid pressure opens the valve disc/valve core, allowing the valve to open. When the medium flows in the reverse direction or the pressure reverses, the valve automatically closes and seals itself due to its own weight and the pressure of the reverse medium, completely blocking backflow without manual or electrical control.

Main Classifications and Structures:
1. Swing Check Valve: The valve disc swings around a pin. Commonly used in large-diameter applications, it has low flow resistance and smooth passage, suitable for water, steam, and oil.

2. Lift Check Valve: The valve disc moves vertically up and down along the valve stem, providing better sealing performance. Often used in small-diameter, high-pressure applications.

3. Wafer Check Valve: Ultra-thin structure, small size, low cost. It is clamped between two flanges for easy installation.

4. Butterfly Double-Disc Check Valve: Double-disc structure, sensitive opening and closing, good buffering, suitable for large-diameter water supply and drainage, and industrial pipelines.

5. Silent Check Valve: With a buffer structure, it reduces water hammer and noise. Commonly used in buildings and pump rooms.

Disc Check Valve

Disc Check Valve

Main Parameters

• Nominal Pressure: PN10～PN40

• Nominal Diameter: DN50～DN1200, with significant advantages for large diameters

• Operating Temperature: -20℃～+200℃, adaptable to high and low temperature conditions depending on the sealing material

• Connection Method: Flange, Wafer, Double Flange, strong installation adaptability

• Sealing Form: Rubber soft seal, metal hard seal, tight seal, sensitive opening and closing

Structural Forms

1. Wafer Butterfly Check Valve: Lightweight and low cost, installed between two flanges, occupying little space.

2. Double-Disc Butterfly Check Valve: Symmetrical structure with double valve plates, smooth opening and closing, low water hammer, suitable for high flow pipelines.

3. Single-Disc Butterfly Check Valve: Simple structure, good flow performance, suitable for conventional water supply and drainage, and industrial pipelines.

Gate Valve

Gate Valve

Working Principle: The medium flows in from below the valve seat, passes through the throttling gap between the valve disc and the valve seat, and flows out from the outlet. The valve disc stroke is controlled by the rise and fall of the valve stem, changing the flow cross-sectional area to achieve both shut-off and throttling. When closed, the axial pressure of the valve stem presses against the sealing surface to achieve a tight seal.

Structural Features:
1. Unidirectional Flow: Medium enters from a lower position and exits from a higher position; cannot be installed in reverse, requiring directional control during installation.

2. Good Sealing Performance: Plane/conical surface seal, tight closure, low leakage.

3. Excellent Throttling Performance: Controllable stroke, suitable for small-amplitude pressure and flow adjustment.

4. Relatively High Flow Resistance: S-shaped flow path in the pipeline, resistance coefficient higher than gate valves and ball valves.

5. Short opening and closing stroke, simple structure, convenient maintenance and replacement of parts.

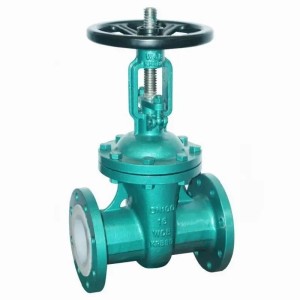

Fluorine-Lined Gate Valve

Fluorine-Lined Gate Valve

Working Principle:
The valve stem drives the gate to rise and fall vertically, controlling the flow of the pipeline; the medium only contacts the fluoroplastic lining layer and does not directly contact the metal valve body, completely isolating it from acid and alkali corrosion; it allows bidirectional flow without flow direction restriction, and is only used for switching off, not for throttling or regulating.
